產品名稱 : 2 爪拔輪器 |
| |
|
產品材質 : 合金鋼材質 |
|
|
| |
|
|
| |
|
 |
 |
|
|
| |
|
|
ARM-GEAR PULLER |
|
 |
型 號 |
規 格 |

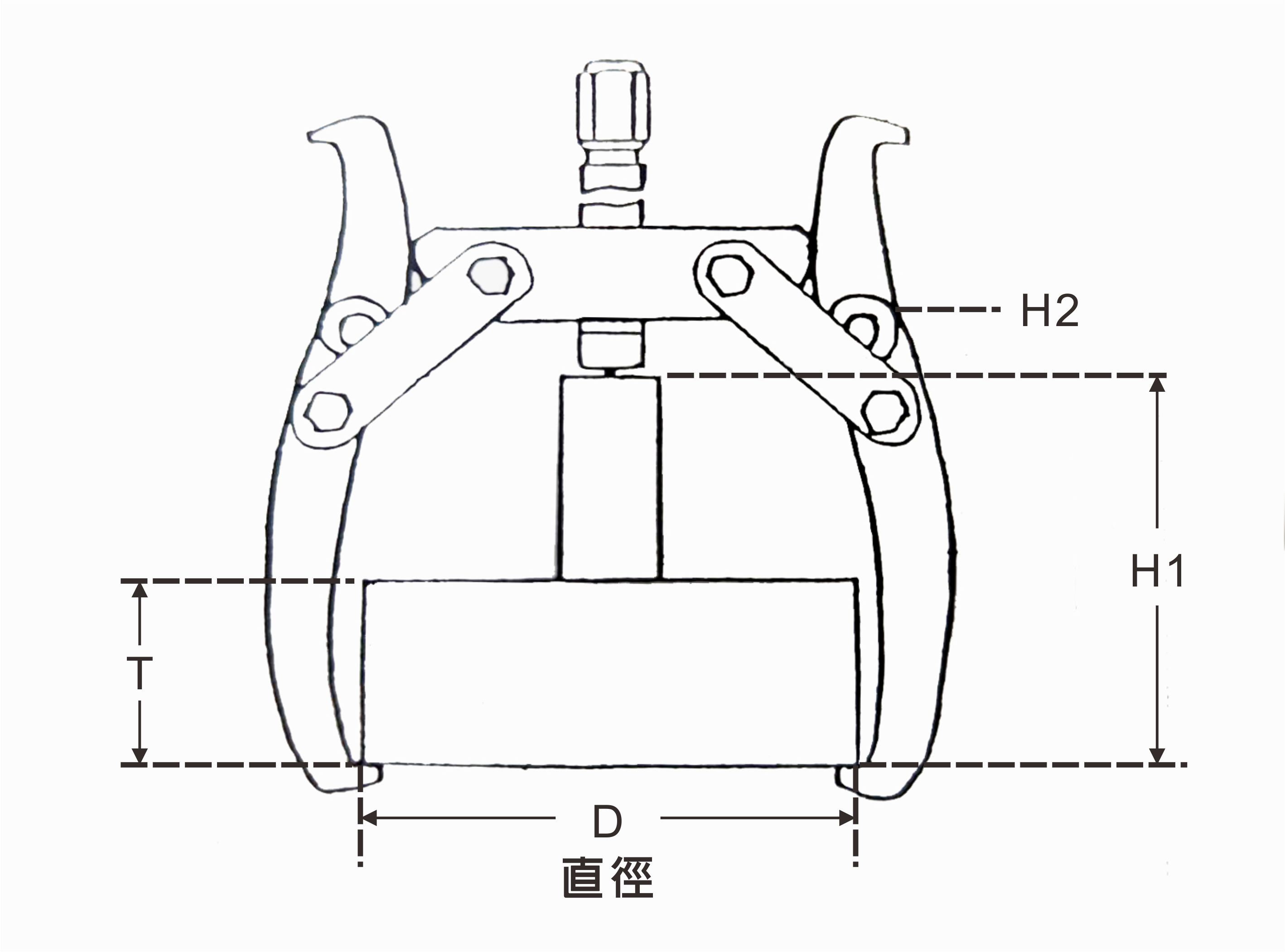

使用之最大尺寸
( D / T ) |
爪子之最大伸長量
( H1 / H2 ) |
使用厚度 |
安全荷重 |
|
| |
2GP- 03 |
75mm |
40mm - 75mm |
60mm |
45mm |
1.50t |
|
2GP- 04 |
100mm |
50mm - 100mm |
70mm |
55mm |
2.50t |
|
2GP- 06 |
150mm |
70mm - 150mm |
120mm |
95mm |
4.50t |
|
2GP- 08 |
200mm |
95mm - 200mm |
175mm |
135mm |
7.80t |
|
2GP- 12 |
300mm |
140mm - 300mm |
215mm |
170mm |
10.00t |
|
|
|
| |
| |
|
|
|
|
| |
| |
| |
|
產品名稱 : 3 爪拔輪器 |
| |
|
產品材質 : 合金鋼材質 |
|
|
| |
|
|
| |
|
 |
|
|
| |
|
|
ARM-GEAR PULLER |
|
 |
型 號 |
規 格 |
使用之最大尺寸
( D / T ) |
爪子之最大伸長量
( H1 / H2 ) |
使用厚度 |
安全荷重 |
|
| |
3GP- 03 |
75mm |
40mm - 75mm |
60mm |
45mm |
2.50t |
|
3GP- 04 |
100mm |
50mm - 100mm |
70mm |
55mm |
4.80t |
|
3GP- 06 |
150mm |
70mm - 150mm |
120mm |
95mm |
7.50t |
|
3GP- 08 |
200mm |
95mm - 200mm |
175mm |
135mm |
11.00t |
|
3GP- 12 |
300mm |
140mm - 300mm |
215mm |
170mm |
14.00t |
|
|
|
|
|
|
